Description & Features

---

Description

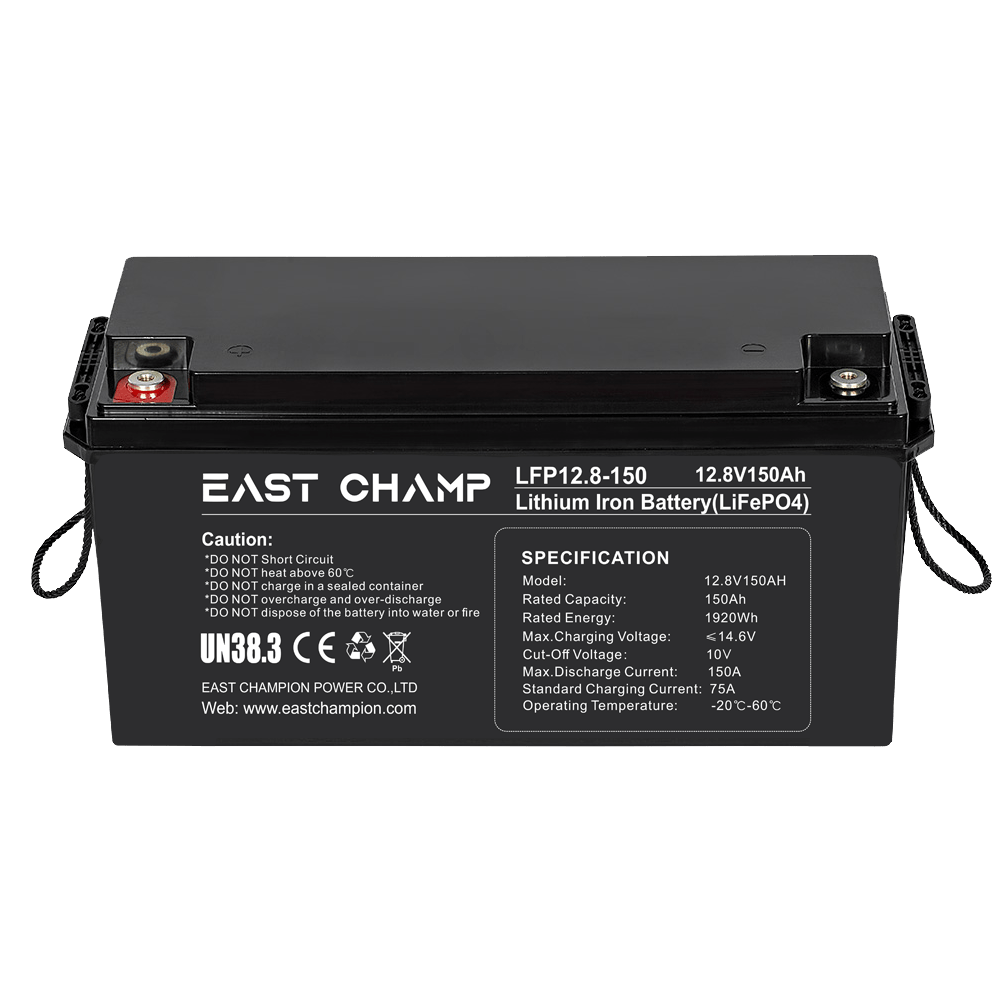

EAST CHAMP 12.8V 150Ah Lead acid to Lithium LiFePO4 is a type of rechargeable lithium battery that utilizes lithium iron phosphate as its cathode material. This chemistry provides several advantages over other lithium-ion batteries, including enhanced safety, longer cycle life, and better thermal stability.

Feature

• Famous Battery Cells: With leading battery cells manufacturers like EVE, CATL,BYD,REPT etc, which make these batteries high quality level.
• Efficiency: High charge and discharge efficiency (>95%).
• Cycle Life: Up to 4000 cycles at 80% depth of discharge (DoD), depending on usage conditions.
• Extended Lifespan: LiFePO4 batteries exhibit superior longevity, capable of enduring significantly more charge-discharge cycles than other lithium-ion battery chemistries.
• Enhanced Safety: These batteries are less susceptible to thermal runaway, rendering them a safer option compared to alternative lithium-ion technologies.
• High Energy Density: LiFePO4 batteries provide a favorable energy-to-weight ratio, making them ideal for applications where weight considerations are paramount.
• Rapid Charging Capability: Often, LiFePO4 batteries support higher charging rates compared to several other battery types, facilitating quicker recharge times

Application

Lead acid to Lithium batteries are versatile and can be used in various applications, including:

• Renewable Energy Storage: Ideal for solar energy systems and wind power storage.
• Electric Vehicles (EVs): Used in electric cars, bikes, and scooters.
• Stationary Power Backup: Suitable for uninterruptible power supplies (UPS) and backup power systems.
• Marine Applications: Commonly used in boats for reliable power supply.
• Portable Power Packs: Employed in portable generators and camping equipment.

Specification

---

BMS Protection System

• Bluetooth Connectivity
• Overcharge Protection
• Over-discharge Protection
• Over-current Protection
• Short Circuit Protection
• Temperature Monitoring and Protection
• Cell Balancing Functionality

Parameters

---

Lead Acid to Lithium
LiFePO4	Nominal Voltage	Nominal Capacity	Nominal Energy	Dimensions（L*W*H)			Approx Weight	Terminal	Spec
	(V)	(Ah)	(Wh)	L (mm)	W (mm)	TH (mm)	(Kg)	Type	View
LFP12.8-6	12.8	6	77	90	70	107	0.9	F2	View
LFP12.8-7	12.8	7	89.6	151	65	94	0.95	F2	View
LFP12.8-8	12.8	8	102	151	65	94	1.1	F2	View
LFP12.8-12	12.8	12	154	151	98	101	1.3	F2	View
LFP12.8-20	12.8	20	256	181	77	167	2	M5	View
LFP12.8-30	12.8	30	384	195	130	168	3.6	M5	View
LFP12.8-40	12.8	40	512	195	130	168	5.6	M6	View
LFP12.8-50	12.8	50	640	229	138	213	6.3	M8	View
LFP12.8-60	12.8	60	768	229	138	213	9.4	M8	View
LFP12.8-80	12.8	80	1024	258	166	215	9.5	M8	View
LFP12.8-100	12.8	100	1280	330	172	215	13	M8	View
LFP12.8-150	12.8	150	1920	483	170	241	20	M8	View
LFP12.8-200	12.8	200	2560	522	240	220	22	M8	View
LFP25.6-50	25.6	50	1280	330	172	215	13.2	M8	View
LFP25.6-60	25.6	60	1536	260	180	257	17.5	M8	View
LFP25.6-85	25.6	85	2176	483	170	240	20.6	M8	View
LFP25.6-100	25.6	100	2560	483	170	240	22	M8	View
LFP25.6-120	25.6	120	3072	483	170	240	26.5	M8	View
LFP25.6-150	25.6	150	3840	520	269	208	35	M8	View
LFP25.6-200	25.6	200	5120	520	269	208	43	M8	View
LFP51.2-100	51.2	100	5120	520	269	208	40	M8	View

Certification

---

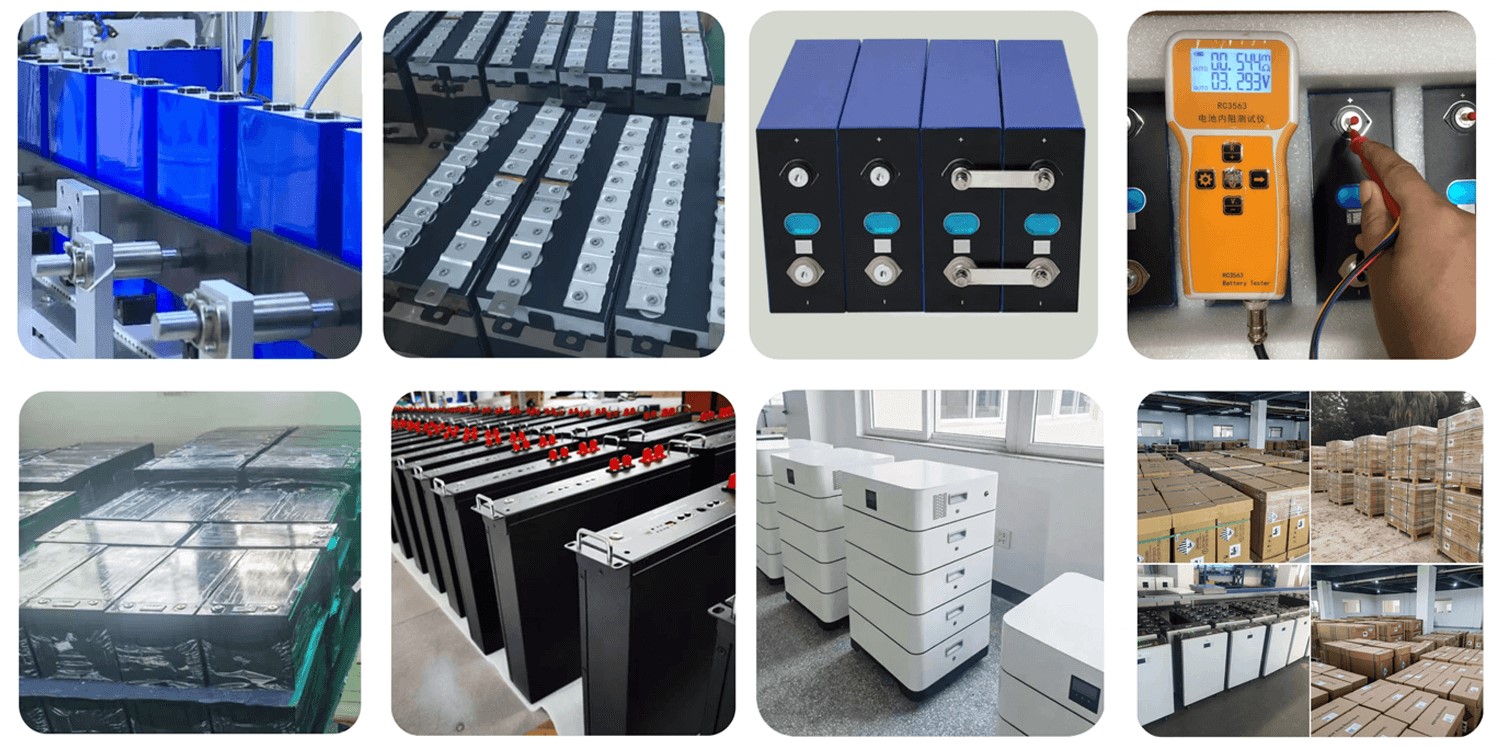

Factory & Production

---
