Description & Features

---

Description

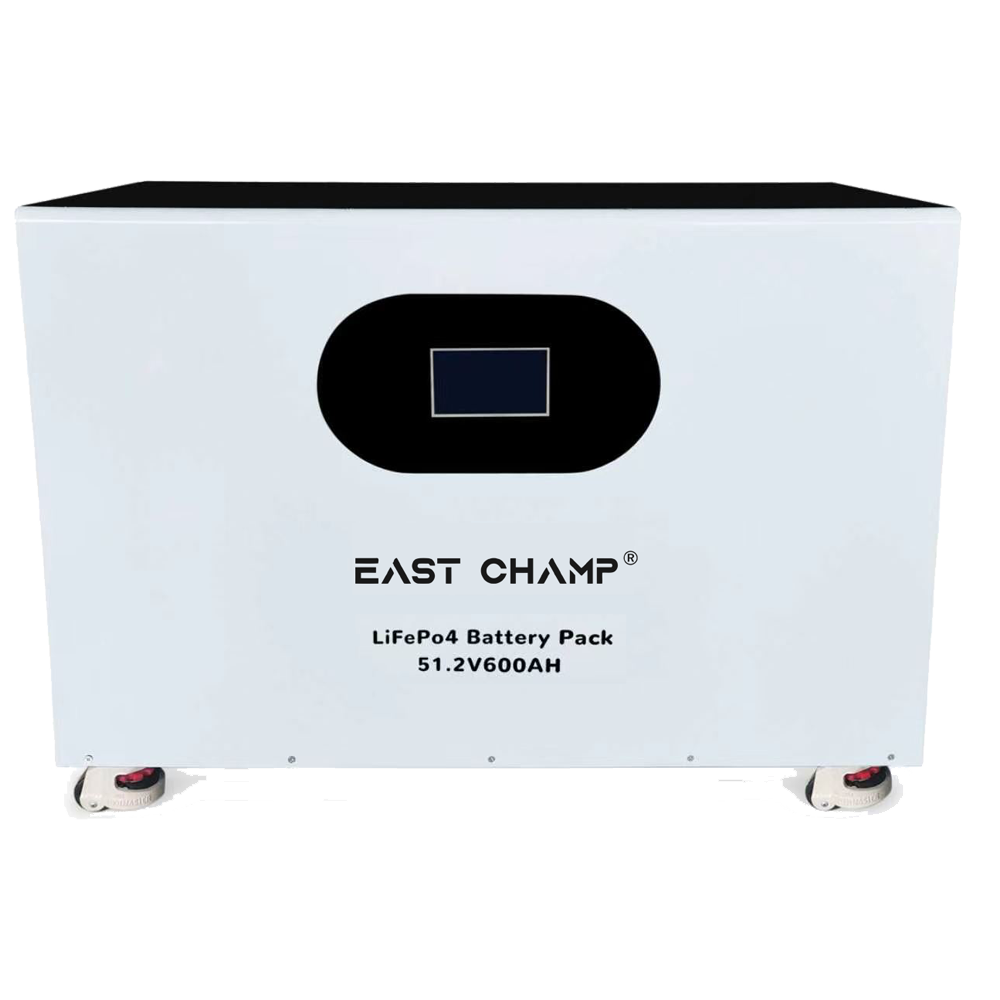

EAST CHAMP standing lithium battery is a single-cabinet floor-standing energy storage unit built on lithium iron phosphate (LiFePO₄) chemistry. Unlike modular stacks that must be assembled from small packs, one cabinet now delivers 16 kWh, 20 kWh,30kWh or 32 kWh​ — roughly 51.2 V at 314 Ah, 400 Ah or 628 Ah respectively — so a whole-home system can be commissioned with one unit, one set of cables and one commissioning visit.

Feature

1. Space Efficiency: Designed to occupy minimal floor space, making them ideal for residential, commercial, and industrial settings where space is limited.
2. High Energy Density: Lithium batteries provide a higher energy density compared to traditional lead-acid batteries, allowing more energy to be stored in a smaller physical footprint.
3. Modular Design: Many wall-mounted systems are modular, meaning they can be easily expanded by adding additional battery units as needed to increase capacity.
4. Integrated Battery Management System (BMS):Equipped with a BMS to monitor cell voltages, temperatures, and overall health, ensuring optimal performance and safety.
5. Battery Status Display: The LCD screen shows different statuses of the battery.
6. Expandable Battery Modules: Battery module units can be connected in parallel to increase capacity.
7. Inverter Compatibility: Supports communication with various types of inverters.
8. Cycle Life:6000-8000 cycles at 80% DOD, Long cycle life time based on A grade Battery Cells quality.

Application

Wall-mounted lithium batteries are versatile energy storage solutions with a range of applications across various sectors. Here’s an overview of their key applications:

• Residential Solar Energy Storage:Used alongside solar panel systems to store excess energy generated during the day for use at night or during power outages.
• Backup Power Systems:Provide backup power for essential appliances and devices during grid outages, enhancing energy resilience.
• Electric Vehicle Charging Stations:Serve as energy storage solutions for home EV chargers, enabling owners to charge their vehicles using stored energy.
• Smart Home Integration:Can be integrated into smart home systems, allowing homeowners to manage their energy usage efficiently.

Specfication

---

Wall-mounted home energy storage series
Type	LiFePO4- Lithium Iron Phosphate Battery Parameters
Battery Model	25.6V-80AH	48V-80AH	51.2V-80AH	25.6V-100AH	48V-100AH	51.2V-100AH	25.6V-200AH	48V-200AH	51.2V-200AH
Nominal voltage	25.6V	48V	51.2V	25.6V	48V	51.2V	25.6V	48V	51.2V
Nominal Capacity	80AH	80AH	80AH	100AH	100AH	100AH	200AH	200AH	200AH
Energy	2.1KWH	3.84KWH	4.1KWH	2.56KWH	4.8KWH	5.12KWH	5.12KWH	9.6KWH	10.24KWH
Charge Cut-off Voltage	29.2V	54.8V	58.4V	29.2V	54.8V	58.4V	29.2V	54.8V	58.4V
Discharge Cut-off Voltage	20.8V	39V	41.6V	20.8V	39V	41.6V	20.8V	39V	41.6V
Charge current	40A	40A	40A	100A	100A	100A	200A	200A	200A
Discharge current	80A	80A	80A	100A	100A	100A	200A	200A	200A
Communication Interface	RS485	RS485+CAN+RS232		RS485	RS485+CAN+RS232		RS485	RS485+CAN+RS232
Communication protocol	Compatible with many mainstream inverter protocols on the market
Dimension（L*W*H)	510*310*166mm	540*426*162mm		540*310*162mm	540*510*162mm		540*485*160mm	800*540*180mm
Charging operating temperature	0℃～45℃
Discharging operating temperature	-20℃～55℃
Storage temperature	-10℃～45℃ （Charge and discharge every other month）
Net Weight	26KG	42KG	44KG	29KG	49KG	51KG	46KG	87KG	92KG
