Description & Features

---

Summary

EAST CHAMP GS Series is a general purpose battery designed for a service life of 6 to 8 years under float usage conditions. Utilizing advanced AGM valve-regulated technology and high-purity raw materials, the GS Series ensures exceptional consistency, delivering superior performance and dependable standby service life. This battery is ideal for applications including uninterruptible power supplies (UPS), emergency power systems (EPS), medical equipment, emergency lighting, and security systems.

GS Battery Application

GS Battery Feature

1. Sealed construction: Prevent electrolyte leakage from both the terminals and the casing, allowing for efficient operation in any orientation.
2. Maintenance-free operation with no need for water addition.
3. With a self-discharge rate of less than 3% per month, it ensures low self-discharge.
4. Made from a special lead-calcium alloy, it exhibits excellent corrosion resistance and high recovery capacity.
5. This battery is certified as non-hazardous by both FAA and IATA.

---

Industrial SLA Battery – General Standard Series
Model	Rated Voltage	Rated Capacity	Terminal	Battery Dimension（mm）				Weight( KGS)	Spec
	(V)	(AH)		Length	Width	Height	Total Height	±3%	PDF
GS4-4	4V	4.0 AH	F1	47	47	101.5	106	0.45 KG	View
GS4-6	4V	6.0 AH	F1	70	47	99.5	105	0.68 KG	View
GS6-1.2	6V	1.2 AH	F1	97	24	52	56	0.26 KG	View
GS6-2.8	6V	2.8 AH	F1	66	33	97	101	0.51 KG	View
GS6-3.2	6V	3.2 AH	F1	124	34	59.5	65	0.59 KG	View
GS6-3.3	6V	3.3 AH	F1	134	34	59.5	65	0.6 KG	View
GS6-4	6V	4.0 AH	F1	70	47	101	106	0.68 KG	View
GS6-4.5	6V	4.5 AH	F1	70	47	101	106	0.72 KG	View
GS6-5	6V	5.0 AH	F1	70	47	101	106	0.75 KG	View
GS6-5.5	6V	5.5 AH	F1	70	47	101	106	0.81 KG	View
GS6-7	6V	7.0 AH	F1	151	35	94	99	1.02 KG	View
GS6-7.2	6V	7.2 AH	F1	151	35	94	99	1.1 KG	View
GS6-7.5	6V	7.5 AH	F1	151	35	94	99	1.16 KG	View
GS6-10	6V	10 AH	F1	151	50	94	99	1.6 KG	View
GS6-12	6V	12 AH	F1	151	50	94	99	1.7 KG	View
GS12-1.3	12V	1.3 AH	F1	97	43	53	57	0.56 KG	View
GS12-2.2	12V	2.2 AH	F1	179	35	61.5	67	0.84 KG	View
GS12-2.9	12V	2.9 AH	F1	79	56	98	103	0.98 KG	View
GS12-3.2	12V	3.2 AH	F1	134	67	60	65	1.2 KG	View
GS12-4	12V	4.0 AH	F1/F2	90	70	101	106	1.35 KG	View
GS12-4.5	12V	4.5 AH	F1/F2	90	70	101	106	1.43 KG	View
GS12-5	12V	5.0 AH	F1/F2	90	70	101	106	1.5 KG	View
GS12-5.5	12V	5.5 AH	F1/F2	90	70	101	106	1.6 KG	View
GS12-5B	12V	5.0 AH	F1/F2	151	50	95	100	1.68 KG	View
GS12-6.5	12V	6.5 AH	F1/F2	151	65	95	100	1.96 KG	View
GS12-7.0	12V	7.0 AH	F1/F2	151	65	95	100	2.02 KG	View
GS12-7.2	12V	7.2 AH	F1/F2	151	65	95	100	2.1 KG	View
GS12-7.5	12V	7.5 AH	F1/F2	151	65	95	100	2.2 KG	View
GS12-8	12V	8.0 AH	F1/F2	151	65	95	100	2.28 KG	View
GS12-9	12V	9.0 AH	F1/F2	151	65	95	100	2.56 KG	View
GS12-10	12V	10.0 AH	F1/F2	151	98	95	100	3.15 KG	View
GS12-12	12V	12.0 AH	F1/F2	151	98	95	100	3.35 KG	View
GS12-12A	12V	12.0 AH	F1/F2	151	98	95	100	3.5 KG	View
GS12-12B	12V	12.0 AH	F1/F2	151	98	95	100	3.65 KG	View
GS12-14	12V	14.0 AH	F1/F2	151	98	95	100	4.1 KG	View
GS12-17	12V	17.0 AH	L1/M5	181	76	167	167	4.8 KG	View

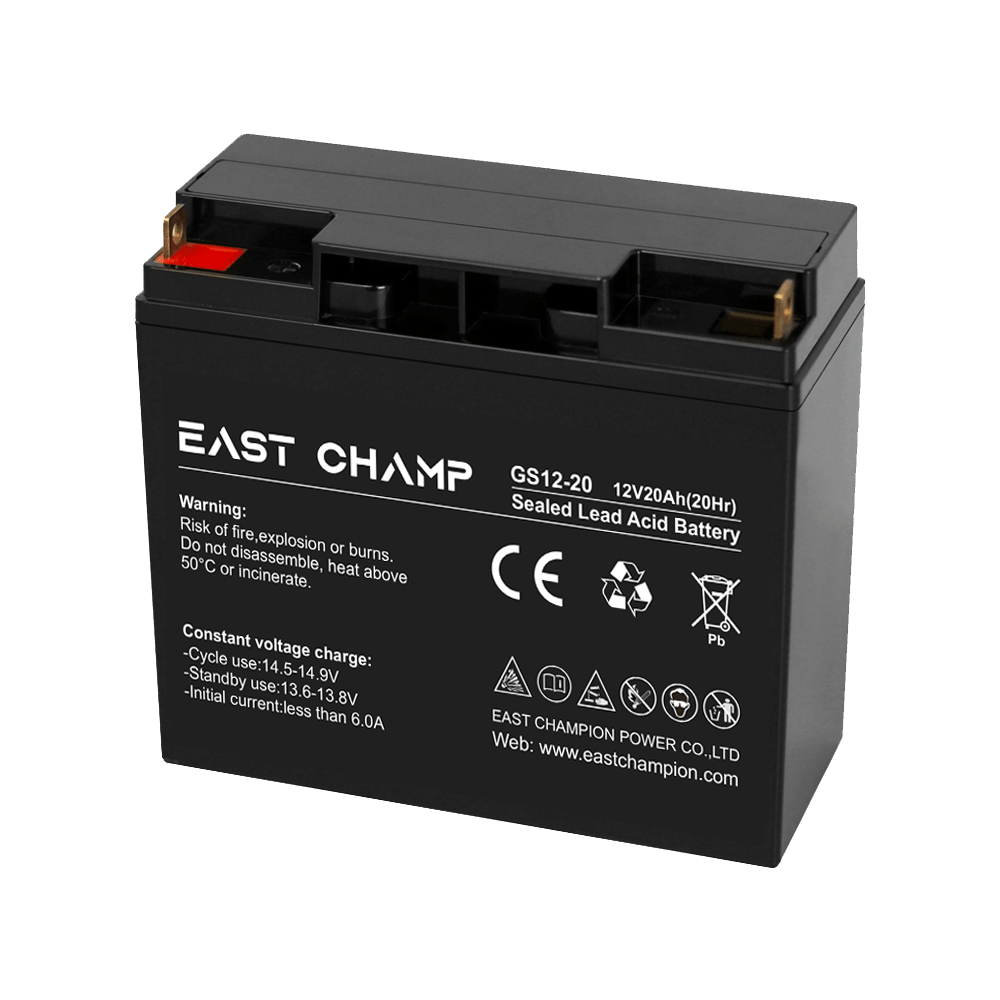

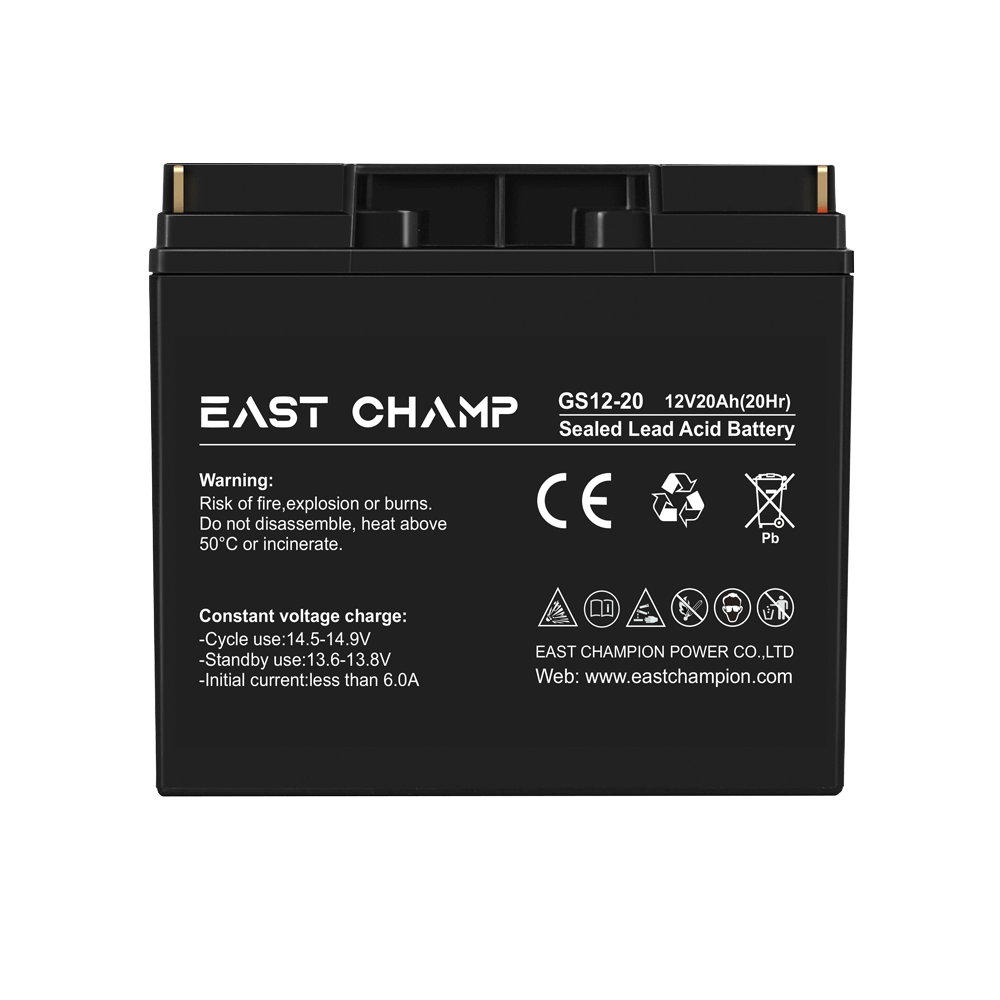

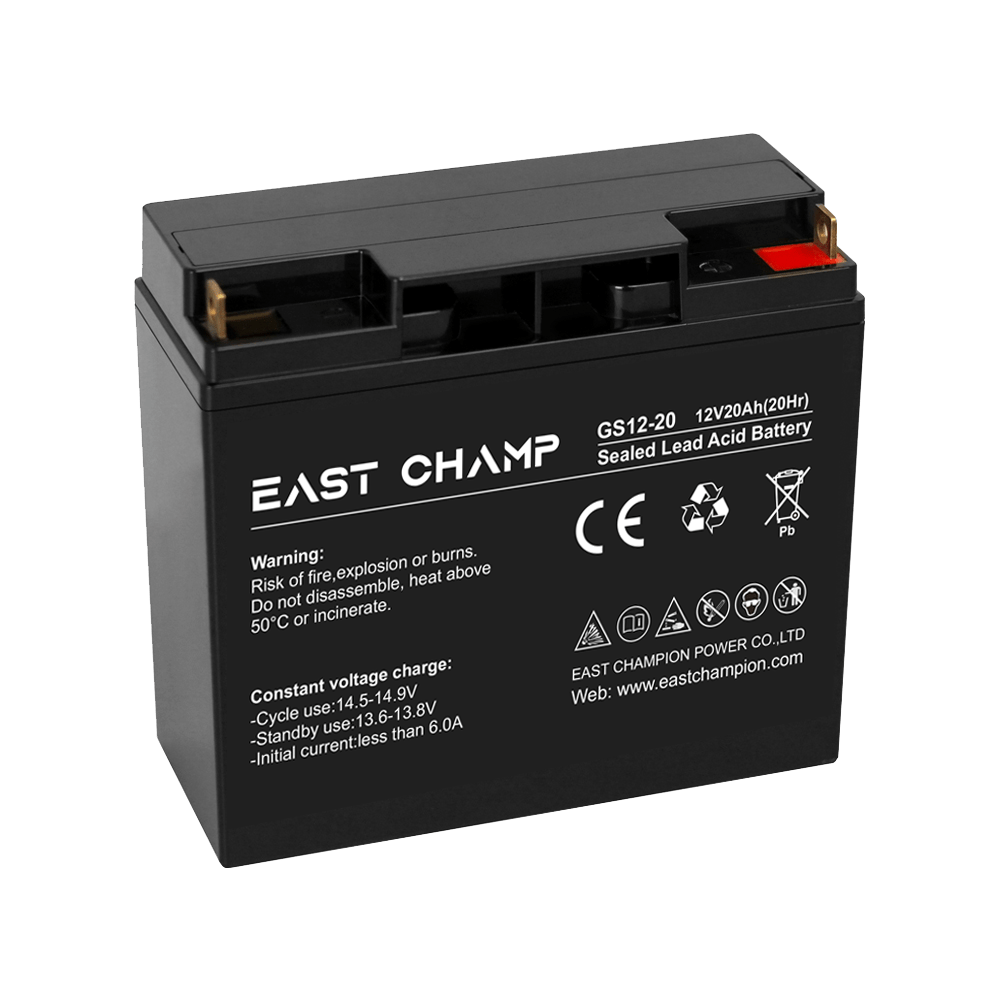

GS12-18	12V	18.0 AH	L1/M5	181	76	167	167	5.0 KG	View
GS12-18B	12V	18.0 AH	L1/M5	181	76	167	167	5.52 KG	View
GS12-20	12V	20.0 AH	L1/M5	181	76	167	167	5.95 KG	View
GS12-24	12V	24.0 AH	L2/M5	166	175	125	125	7.4 KG	View
GS12-26	12V	26.0 AH	L2/M5	166	175	125	125	8.0 KG	View
GS12-28	12V	28.0 AH	L2/M5	166	175	125	125	9.0 KG	View
GS12-24L	12V	24.0 AH	M5	165	125	174	174	6.4 KG	View
GS12-28L	12V	28.0 AH	M5	165	125	174	174	8.2 KG	View
GS12-32	12V	32 AH	M6	196	131	161	168	9.0 KG	View
GS12-33	12V	33 AH	M6	196	131	161	168	9.8 KG	View
GS12-35	12V	35 AH	M6	196	131	161	168	10.6 KG	View
GS12-40	12V	35 AH	M6	196	131	161	168	11.4 KG	View
GS12-38	12V	38 AH	M6	196	166	176	176	11.5 KG	View
GS12-38B	12V	38 AH	M6	196	166	176	176	12.1 KG	View
GS12-40	12V	40 AH	M6	196	166	176	176	12.5 KG	View
GS12-45	12V	45 AH	M6	196	166	176	176	14.1 KG	View
GS12-55	12V	55 AH	M6	229	137	205	210	16.5 KG	View
GS12-60	12V	60 AH	M6	229	137	205	210	17.2 KG	View
GS12-65	12V	65 AH	M6	350	169	179	179	19.5 KG	View
GS12-65A	12V	65 AH	M6	350	169	179	179	20.4 KG	View
GS12-80	12V	80 AH	M6	350	169	179	179	22.5 KG	View
GS12-75	12V	75 AH	M6	260	169	213	217	21.5 KG	View
GS12-80A	12V	80 AH	M6	260	169	213	217	23.0 KG	View
GS12-80B	12V	80 AH	M6	260	169	213	217	24.0 KG	View
GS12-85	12V	85 AH	M6	260	169	213	217	25.7 KG	View
GS12-90A	12V	90 AH	M6/M8	306	168	211	215	27.0 KG	View
GS12-100	12V	100 AH	M6/M8	306	168	211	215	28.2 KG	View
GS12-112	12V	112 AH	M6/M8	306	168	211	215	29.6 KG	View
GS12-100A	12V	100 AH	M8	328	172	218	222	29.5 KG	View
GS12-110	12V	110 AH	M8	328	172	218	222	31.5 KG	View
GS12-125	12V	125 AH	M8	328	172	218	222	33.5 KG	View
GS12-120	12V	120 AH	M8	406	173	237	237	33.5 KG	View
GS12-120A	12V	120 AH	M8	406	173	237	237	35.0 KG	View
GS12-120S	12V	120 AH	M8	407	176	223.8	223.8	33.7 KG	View
GS12-135	12V	135 AH	M8	341	173	283	288	38.6 KG	View
GS12-150	12V	150 AH	M8	484	170	240	240	41.5 KG	View
GS12-150A	12V	150 AH	M8	484	170	240	240	43.0 KG	View
GS12-160E	12V	160 AH	M8	484	170	240	240	45.0 KG	View
GS12-160	12V	160 AH	M8	532	206	215	219	46.6 KG	View
GS12-170	12V	170 AH	M8	532	206	215	219	52.0 KG	View
GS12-200	12V	200 AH	M8	522	240	218	222	57.0 KG	View
GS12-200A	12V	200 AH	M8	522	240	218	222	59.5 KG	View
GS12-220	12V	220 AH	M8	522	240	218	222	63.0 KG	View
GS12-250	12V	250 AH	M8	520	269	219	223	72.0 KG	View
GS12-280	12V	280 AH	M8	520	269	219	223	75.0 KG	View
GS12-300	12V	300 AH	M8	520	269	219	223	77.0 KG	View
