Description & Features

---

Description

EAST CHAMP Gel Battery utilizes advanced sealed gel technology, engineered to deliver highly reliable, maintenance-free power specifically tailored for renewable energy applications. Leveraging the benefits of gel technology along with an optimized grid and plate design, the EAST CHAMP Gel Battery provides exceptional power output and reliability, ensuring optimal performance for your equipment.

GEL Battery Application

• Renewable Energy Systems (Solar Power / Wind Energy)
• Telecommunication
• Uninterruptible Power Supply (UPS) Systems
• Data Centers
• Medical Equipment
• Golf Carts
• Marine and RV Applications
• Security Systems
• Power Tools and Equipment
• Off-Grid Power Systems
• Etc

Feature

• Exceptional Energy Storage: Provides excellent energy storage capacity with high reliability.
• Long Life Span: Offers a design life of 10 years at an ambient temperature of 25 °C, retaining 80% capacity from C20.
• Robust Grid Construction: Features a grid plate made from lead-calcium alloy for enhanced performance.
• High Cycle Service Life: Engineered for extended cycles, supporting frequent discharge and recharge.
• Superior Temperature Resistance: Maintains performance across a broad temperature range, from -40 °C to +55 °C.
• Excellent Deep Cycle Capability: Optimized for deep cycling applications, providing reliable power over prolonged use.
• Enhanced Low Current Discharge: Exhibits superior performance during low current discharge scenarios.
• Improved Charge Acceptability: Designed for better acceptance of charging, increasing efficiency.
• Low Self-Discharge Rate: Characterized by minimal self-discharge, maintaining charge for longer durations.

Specification

---

Industrial SLA Battery – GEL Series

---

Industrial SLA Battery – GEL Series
Model	Rated Voltage	Rated Capacity	Terminal	Battery Dimension（mm）				Weight (KGS)	Spec
	(V)	(AH)		Length	Width	Height	Total Height	±3%	PDF
GEL12-33	12V	33 AH	L3/M6	196	131	161	168	10.6 KG	View
GEL12-38	12V	38 AH	L4/M6	196	166	176	176	12.5 KG	View
GEL12-40	12V	40 AH	L4/M6	196	166	176	176	13.2 KG	View
GEL12-55	12V	55 AH	L5/M6	229	137	205	210	17.2 KG	View
GEL12-65	12V	65 AH	M6	350	169	179	179	20.4 KG	View
GEL12-75	12V	75 AH	L5/M6	260	169	213	217	22.0 KG	View
GEL12-90	12V	90 AH	M6/M8	306	168	211	215	28.2 KG	View
GEL12-100	12V	100 AH	M8	328	172	218	222	30.2 KG	View
GEL12-120	12V	120 AH	M8	406	173	237	237	35.5 KG	View
GEL12-150	12V	150 AH	M8	484	170	240	240	43.0 KG	View

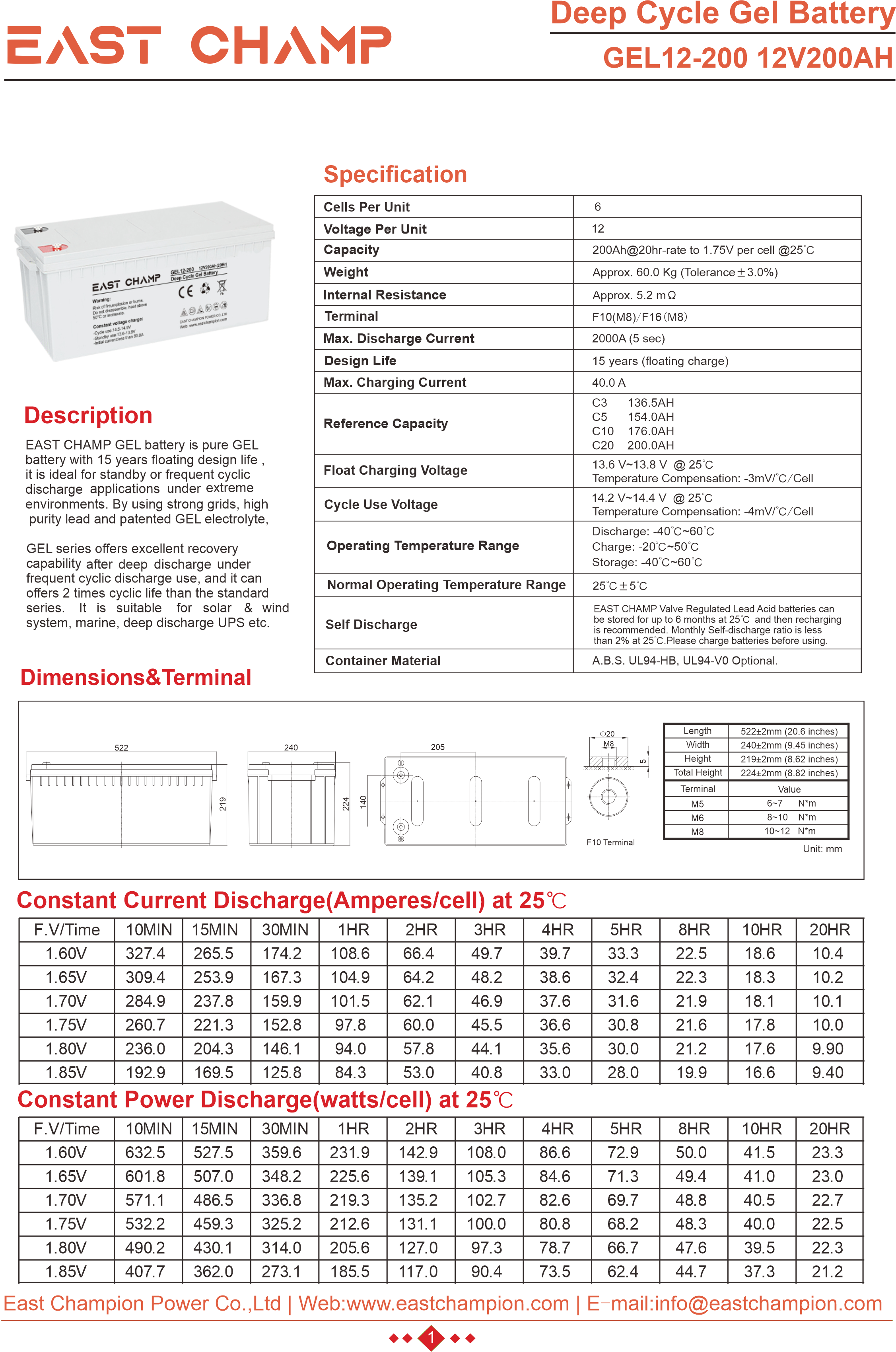

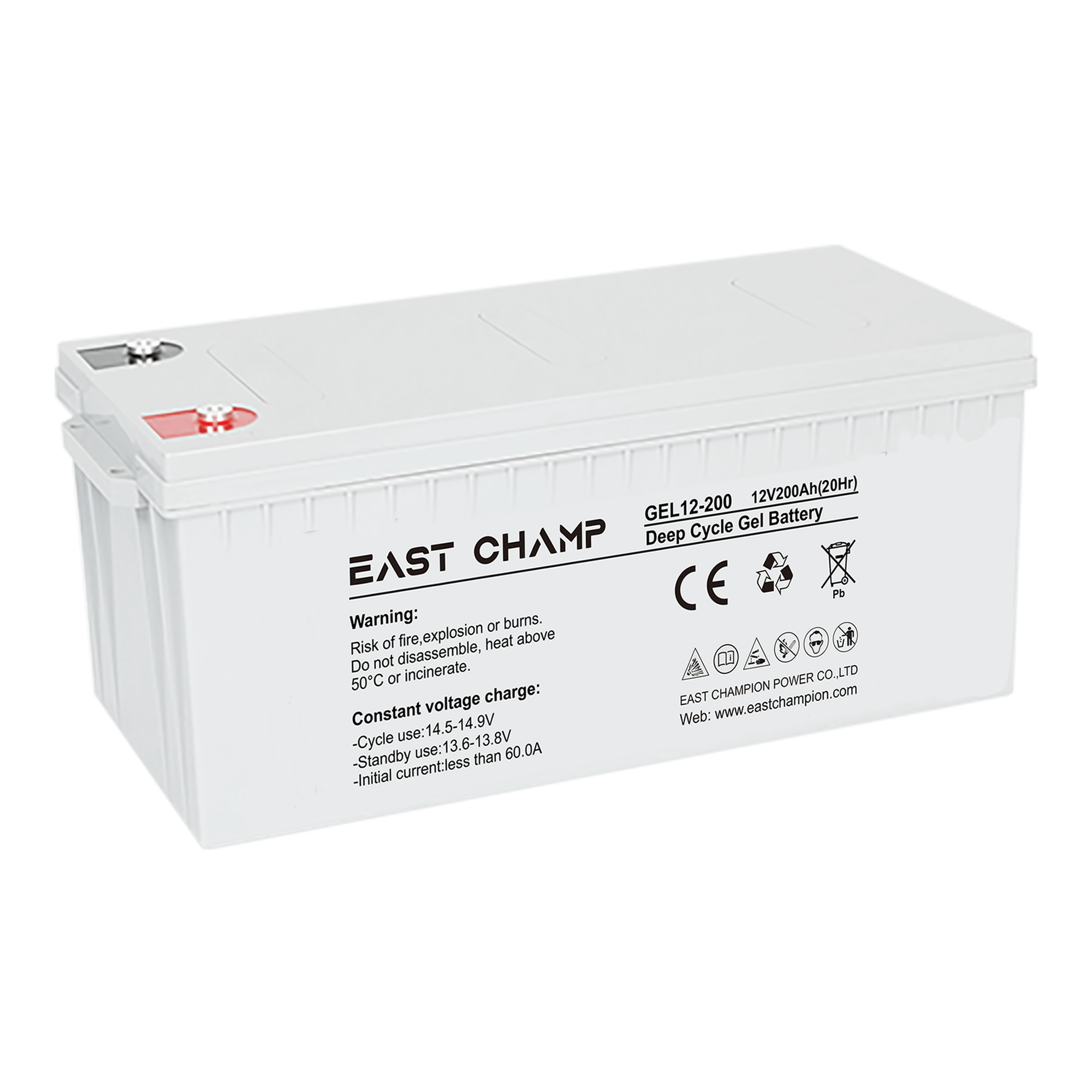

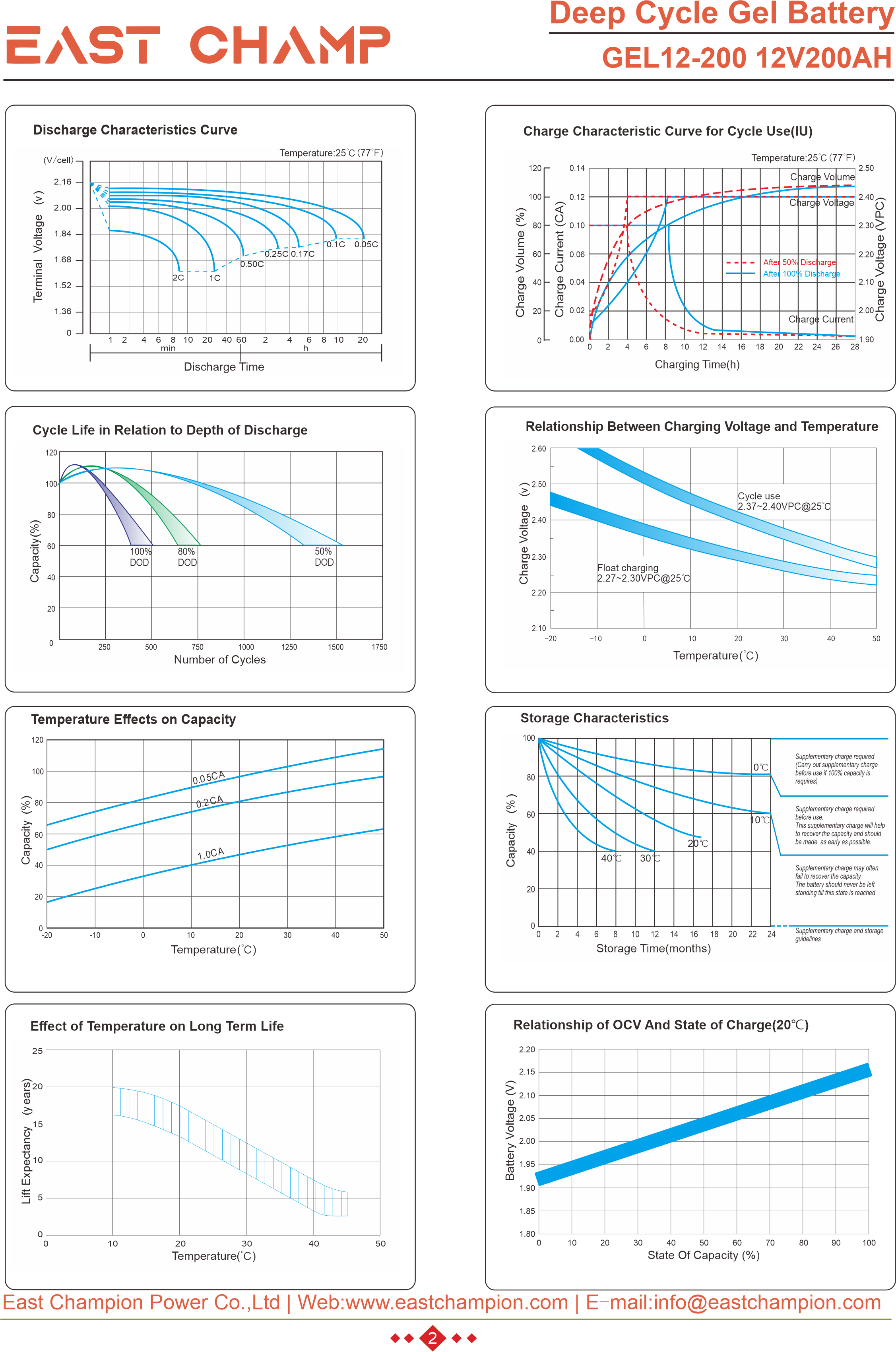

GEL12-200	12V	200 AH	M8	522	240	218	222	60.5 KG	View
GEL12-250	12V	250 AH	M8	520	269	219	223	72.5 KG	View
GEL2-200	2V	200 AH	M8	173	111	335	365	12.5 KG	View
GEL2-300	2V	300 AH	M8	171	151	340	365	18.8 KG	View
GEL2-400	2V	400 AH	M8	210	175	336	365	24.5 KG	View
GEL2-500	2V	500 AH	M8	240	172	338	365	29.7 KG	View
GEL2-600	2V	600 AH	M8	301	175.5	340	365	36.5 KG	View
GEL2-800	2V	800 AH	M8	409	175	340	365	48 KG	View
GEL2-1000	2V	1000 AH	M8	475	175	337	364	60 KG	View
GEL2-1200	2V	1200 AH	M8	475	175	337	364	62.5 KG	View
GEL2-1500	2V	1500 AH	M8	353	335	328	347	85 KG	View
GEL2-2000	2V	2000 AH	M8	490	350	344	383	129 KG	View
GEL2-3000	2V	3000 AH	M8	712	353	341	382	171 KG	View
