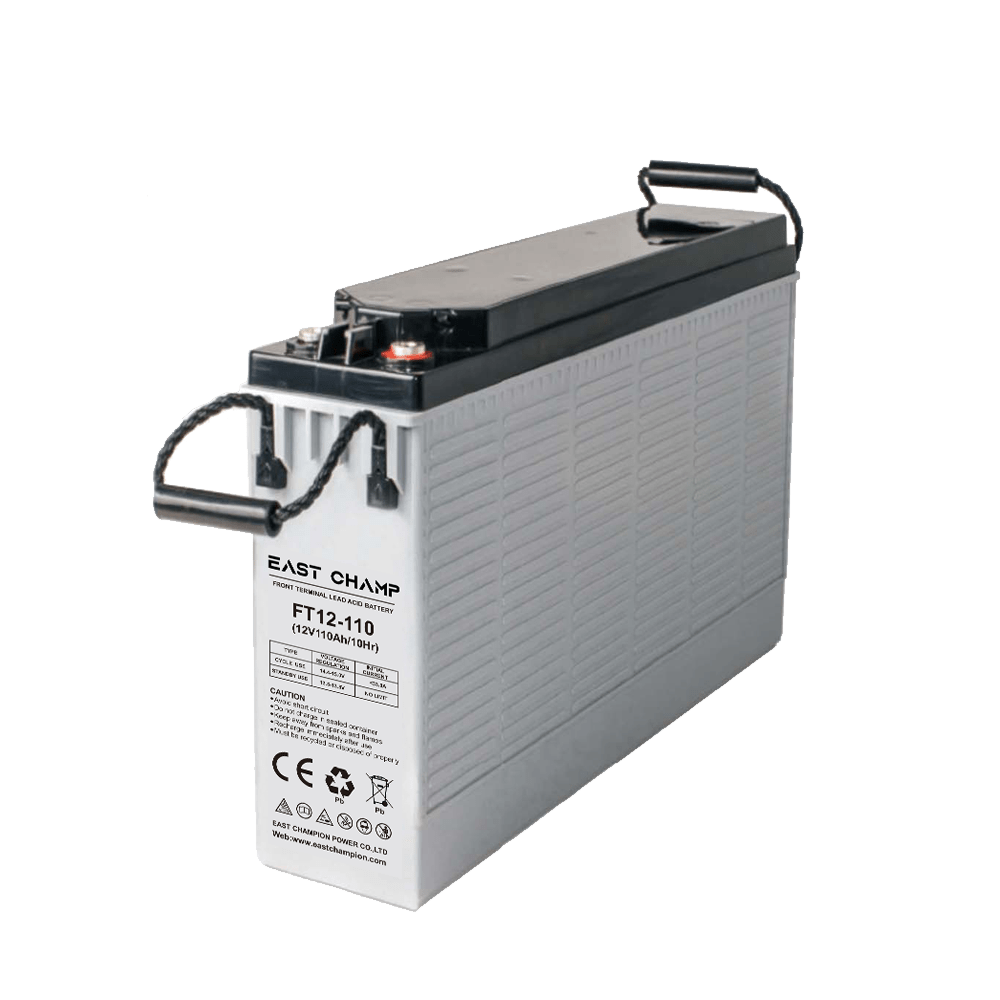

FT12-110 12V110AH Front Terminal Lead Acid Battery

FT12-110 12V110AH Front terminal lead acid battery

Battery Model: FT12-110 / 12V110AH
Dimension: 508*110*236mm
Battery Weight: 32.5KG
Application: Telecom /Solar power system etc
FT Battery Voltage Range:12V
FT Battery Capacity Range: 55AH-200AH
OEM:Accepted
Lead time: 15-20 Days
Shipping port:Shenzhen /Shanghai etc

Description & Features

Description:

EAST CHAMP Front Terminal Battery is specifically engineered for telecom applications, this battery boasts a design life exceeding 10 years in float service. The long, narrow front terminals facilitate straightforward installation and maintenance. Additionally, the battery is versatile enough to be installed in any orientation, ensuring compatibility with standard cabinets and racks.

Front Terminal Battery Application

Telecommunications: Powering communication equipment in central offices and cell towers.
Uninterruptible Power Supplies (UPS): Providing backup power for critical operations and data integrity during outages.
Renewable Energy Systems: Storing energy generated from solar panels or wind turbines for later use.

Feature:

Compatibility and Design: Standardized structure suitable for both 19-inch and 23-inch battery cabinets, featuring a narrow and tall configuration that enhances heat dissipation.
Low Self-Discharge Rate: Exhibits an extremely low self-discharge rate, enabling prolonged periods of inactivity without compromising performance.
Optimized Construction: Incorporates computer-aided design and lead-calcium-tin alloy grids, specifically engineered for high-power discharge capabilities.
Enhanced Usability: Features a unique handle design that simplifies handling and installation processes.

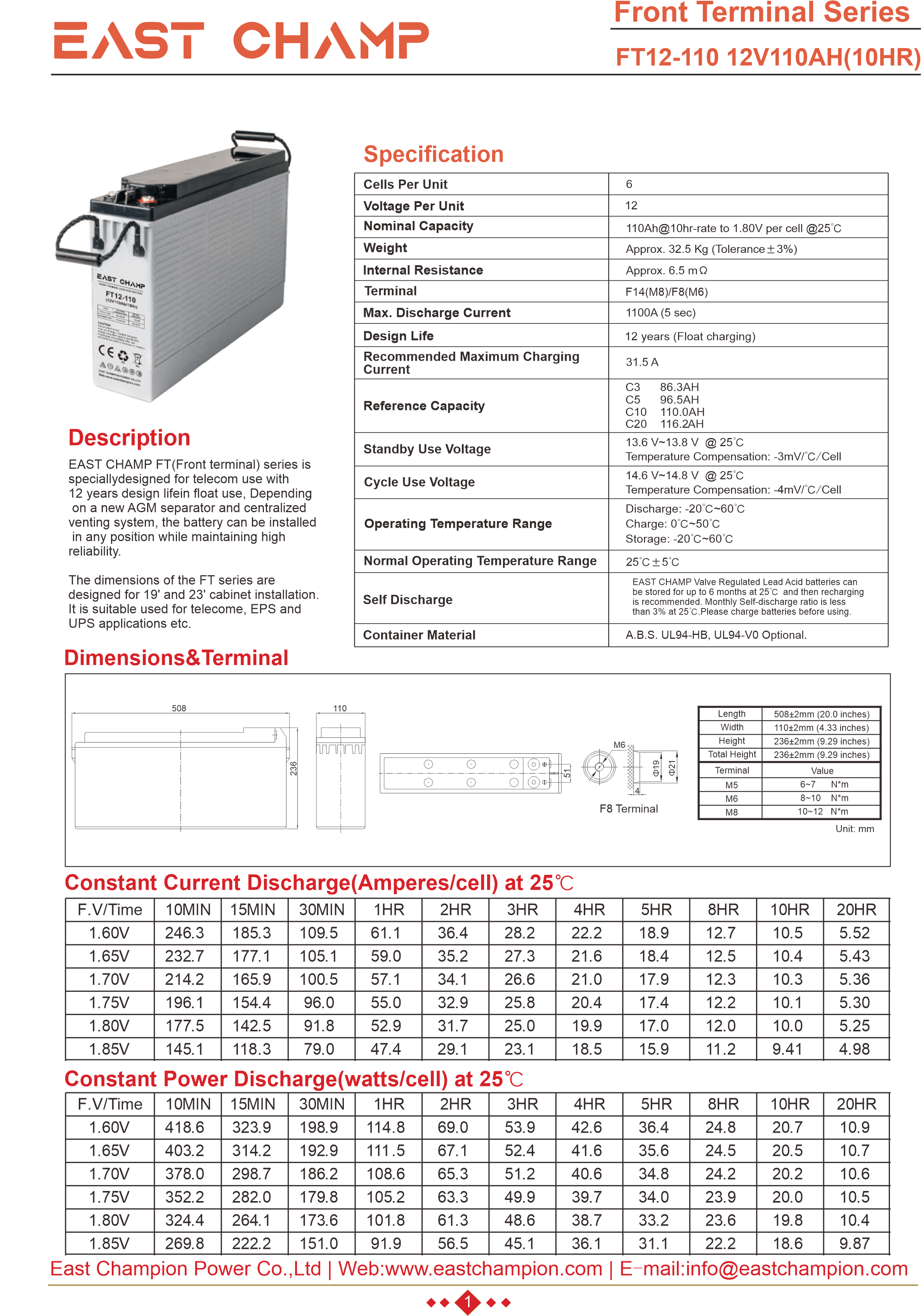

Specification

Industrial SLA Battery – Front Terminal Series

Industrial SLA Battery – Front Terminal Series
Model	Rated Voltage	Rated Capacity	Terminal	Battery Dimension（mm）				Weight (KGS)	Spec
Model	(V)	(AH)	Terminal	Length	Width	Height	Total Height	±3%	PDF
FT12-55	12V	55 AH	M6	277	106	231	231	16.0 KG	View
FT12-75	12V	75 AH	M6	561	115	187	187	23.5 KG	View
FT12-100	12V	100 AH	M8	394	110	285	285	30.8 KG	View
FT12-100C	12V	100 AH	M8	409	110	295	295	31.0 KG	View
FT12-105	12V	105 AH	M8	507	110	231	231	30.5 KG	View
FT12-105F	12V	105 AH	M8	407	110	223	238	30.0 KG	View
FT12-150	12V	150 AH	M8	551	110	287	287	45.5 KG	View
FT12-155	12V	155 AH	M8	551	110	287	287	48.0 KG	View
FT12-180	12V	180 AH	M8	560	125	316	316	54.0 KG	View
FT12-200	12V	200 AH	M8	560	125	316	316	58.0 KG	View
