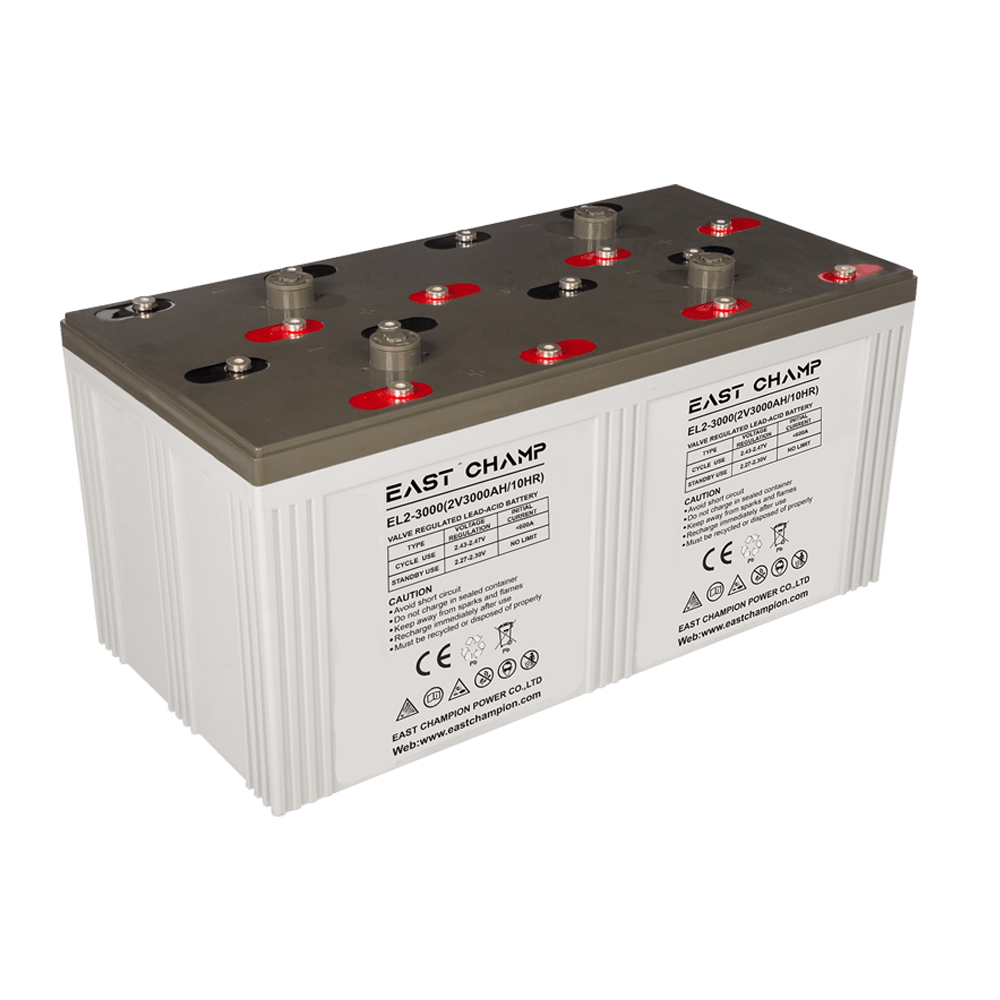

EL2-3000 2V3000AH Lead Acid Battery
EL2-3000 2V3000AH lead acid battery
- Battery Model: EL2-3000 / 2V3000AH
- Dimension: 712*353*341mm
- Battery Weight: 171Kg
- Application: Telecom system, Solar system etc
- YL Battery Voltage Range:2V
- YL Battery Capacity Range: 100AH-3000AH
- OEM:Accepted
- Lead time: 15-20 Days
- Shipping port:Shenzhen /Shanghai etc
Description & Features
Description
EAST CHAMP 2V large size lead acid battery consists of multiple cells connected in series to provide the required voltage for various applications. These batteries are characterized by their robust construction and high energy density, making them suitable for a wide range of industrial and commercial uses.
2V Battery Application
- Telecommunications
- UPS
- Renewable Energy Systems
- Industrial Equipment
- Railway
- Etc
2V Battery Feature
- High Capacity: Designed to deliver substantial power, these batteries can have capacities ranging from 100AH to 3000Ah, allowing for extended usage in demanding applications.
- Durability: Constructed with durable materials, large size lead acid batteries can withstand harsh environmental conditions, including temperature fluctuations and vibrations.
- Long Service Life: Typically engineered for a long operational life, they can endure numerous charge and discharge cycles, particularly when used in float service applications.
- Maintenance-Free Options: Many large size lead acid batteries are sealed valve-regulated types (VRLA), requiring minimal maintenance and offering enhanced safety features.
- Good Performance Under Load: Capable of delivering high discharge rates, making them suitable for applications that demand significant power output over short durations.
- Recyclability: Lead acid batteries are fully recyclable, contributing to sustainable practices in energy storage.

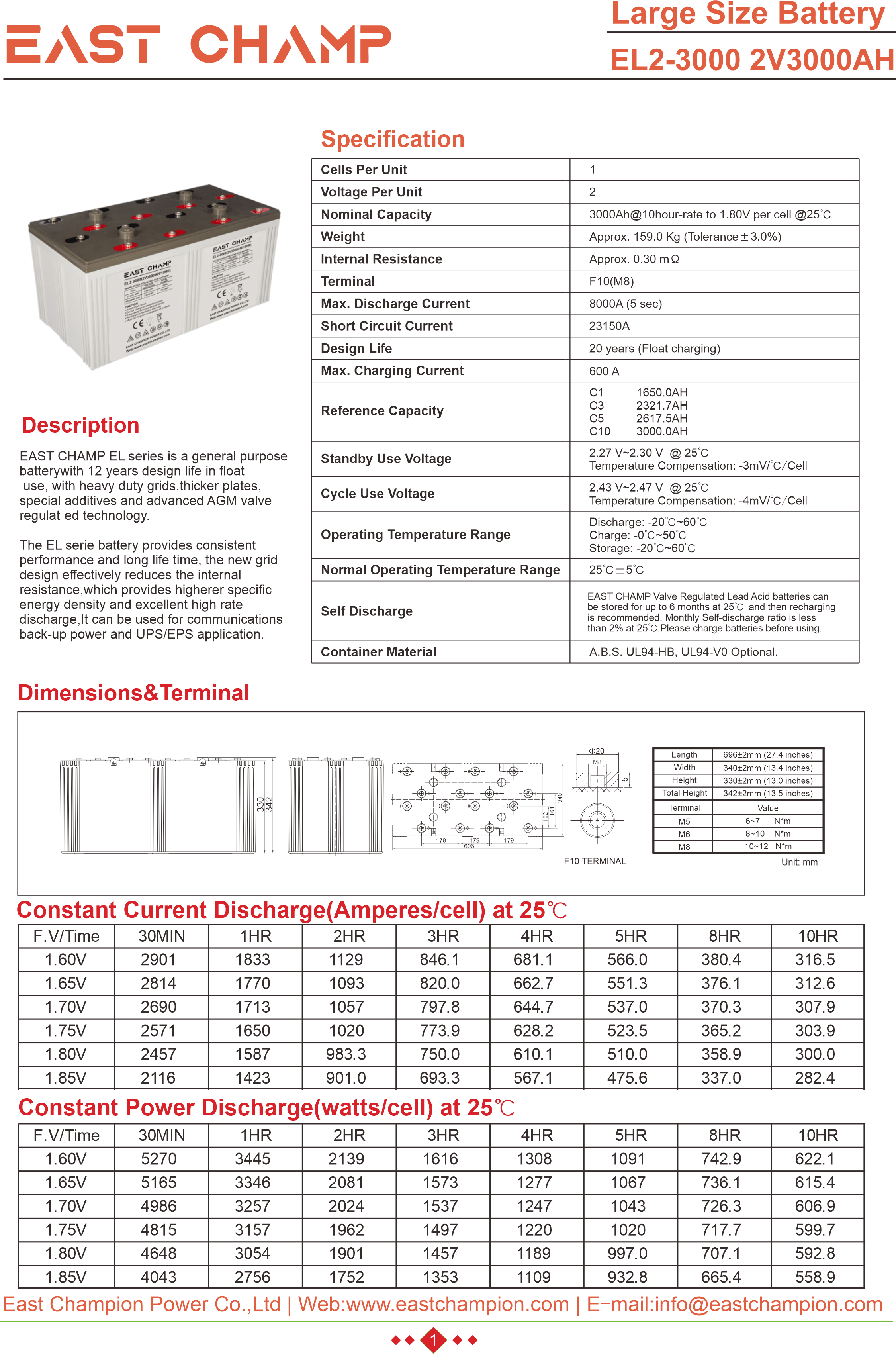

Specification
Industrial SLA Battery – 2V Series
| Industrial SLA Battery – 2V Series |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage | Rated Capacity | Terminal | Battery Dimension（mm） | Weight (KGS) | Spec | |||
| (V) | (AH) | Length | Width | Height | Total Height | ±3% | |||
| EL2-200 | 2V | 200 AH | M8 | 173 | 111 | 335 | 365 | 12.5 KG | View |
| EL2-300 | 2V | 300 AH | M8 | 171 | 151 | 340 | 365 | 18.8 KG | View |
| EL2-400 | 2V | 400 AH | M8 | 210 | 175 | 336 | 365 | 24.5 KG | View |
| EL2-500 | 2V | 500 AH | M8 | 240 | 172 | 338 | 365 | 29.7 KG | View |
| EL2-600 | 2V | 600 AH | M8 | 301 | 175.5 | 340 | 365 | 36.5 KG | View |
| EL2-800 | 2V | 800 AH | M8 | 409 | 175 | 340 | 365 | 48 KG | View |
| EL2-1000 | 2V | 1000 AH | M8 | 475 | 175 | 337 | 364 | 60 KG | View |
| EL2-1200 | 2V | 1200 AH | M8 | 475 | 175 | 337 | 364 | 62.5 KG | View |
| EL2-1500 | 2V | 1500 AH | M8 | 353 | 335 | 328 | 347 | 85 KG | View |
| EL2-2000 | 2V | 2000 AH | M8 | 490 | 350 | 344 | 383 | 129 KG | View |
| EL2-3000 | 2V | 3000 AH | M8 | 712 | 353 | 341 | 382 | 171 KG | View |
